SPECIFICATIONS

Product Features

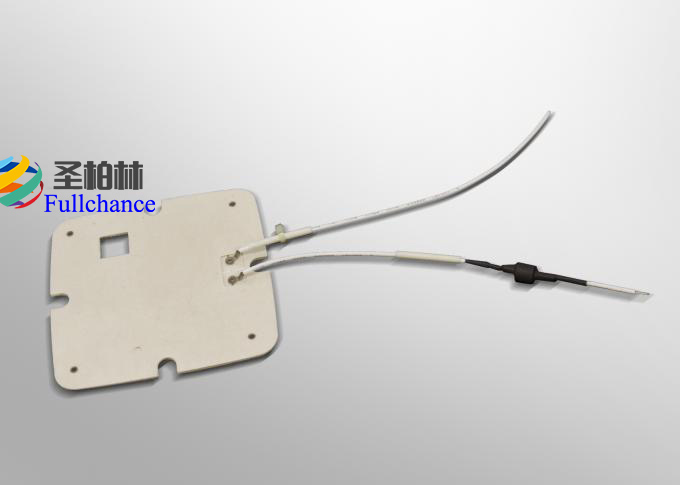

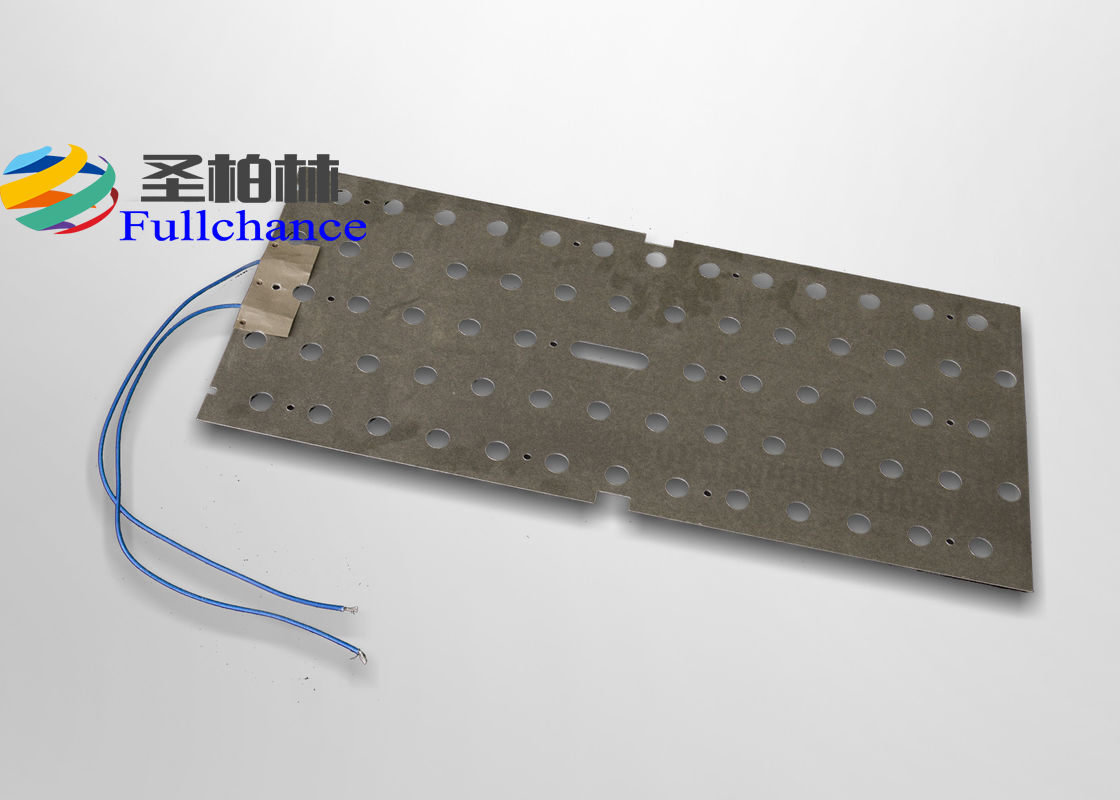

Mica Heating Panel

About Mica Heaters
Fullchance designed more than 10,000 heating solutions,please feel free to request a brochure and sample.
Mica Thermofoil heaters consist of an etched-foil element sandwiched between layers of mica. Installed by clamping to heat sinks, mica heaters provide the ultimate temperature and wattage capability for fast warm up.

Benefits of Mica Heaters

•Broad temperature range of -150º to 600°C (-238° to 1112°F) provides faster processing and cycle
times for greater production output
•High watt density capability to 110 W/in² (17 W/cm²) provides faster processing times than
conventional mica strip heaters
•Custom profiled heat density and mechanical clamping offers uniform heat sink temperature which
can improve processing yields

Product Features

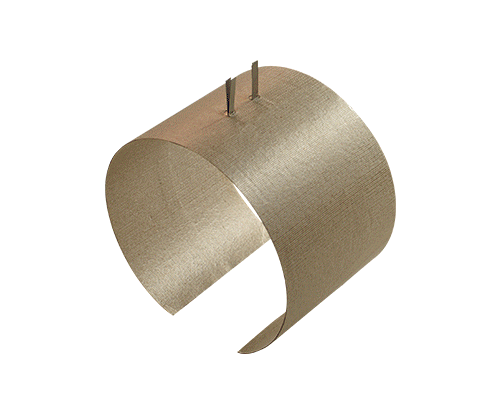

1 Can be factory formed to curves
2 Can be integrated with
3 Clamp directly to heat sink for exceptional heat transfer
4 Suitable for vacuum use after organic binder is burned off in initial power-up

Technical Details

1 Broad temperature range of -150º to 600°C (-238° to 1112°F) provides faster processing and cycle times for greater production output
2 High watt density capability to 110 W/in² (17 W/cm²) provides faster processing times than
conventional mica strip heaters
3 Custom profiled heat density and mechanical clamping offers uniform heat sink temperature which can improve processing yields
4 CE certification is available which can save time and money for end-use CE device recognition
